The Revert 5.0
Born to take on the most demanding technical gravity parks the world has to offer; The Revert 5.o is a true gravity flow weapon!

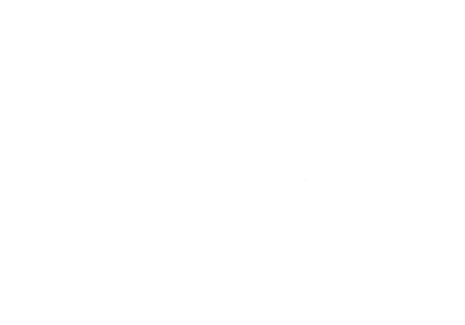

Designed as a simple lightweight gravity influenced frame with hydro formed 6061 tubing; The Revert 5.0 comes dropper post ready with internal cable routing system and features a seatstay mounted switch-chip link allowing a choice between four or five inches of rear travel! You can truly set this bike up to suit any trail.
Rotec’s new “Shared Pivot Technology” produces an outstandingly stiff rear end, resulting in superb and responsive handling over the roughest terrain! The REVERT's four or five inches of travel can absorb the larger hits, avoiding loss of momentum while providing exceptional balance and control..
The Revert 5.0 is designed to run today's favored 27.5” wheel size with a 142mm rear hub spacing and sliding drop-outs that accommodate 26! The Revert can even be set up to run as a single speed... no guide or tensioner needed!
The Revert 5.0 will perform every weekend giving any rider the confidence to push their boundaries of performance and ability!
Welcome to fun, performance and simplicity all crafted into one solid design.
Only a few Medium in Glossy Red left in stock
.Large Red or Royal Matte Blue or Large Glossy Red may still be available at other world-wide Rotec sales locations
$1499.00 USD (without shock) $1799.00 USD (with DVO's Topaz Air shock)
AVAILABLE TO PURCHASE TODAY!
Geometry
KEY
ST
TTe
HT
Ha
WB
CS
STa
BB
Re
Medium
381
588
110
66
1174
435
74.5
337
423
Large
406
615
110
66
1201
435
74.5
337
448
Features
26 or 27,5 wheelset ready frame
Hydroformed 6061 Aluminium tube set
Aggressive gravity park/ slope style inspired geometry
Tapered head tube: 44/56mm
ISCG: 2005
Head angle: 66 degrees
Seatpost: 30.9mm
Seatpost angle: 74.5
Rear axle: 12mm x 142 QR
Adjustable Drop-Out Chain stay length: 435mm - 460mm
BB shell: 73mm
BB height: 342mm
Sizes: M (381mm) L (406mm)
ORDER YOUR FRAMESET TODAY!
Simply request a pre order using the form provided below and we will get back to you with all the details requiered, Please fill out the form with all contact details and be sure to specify colour and size.
